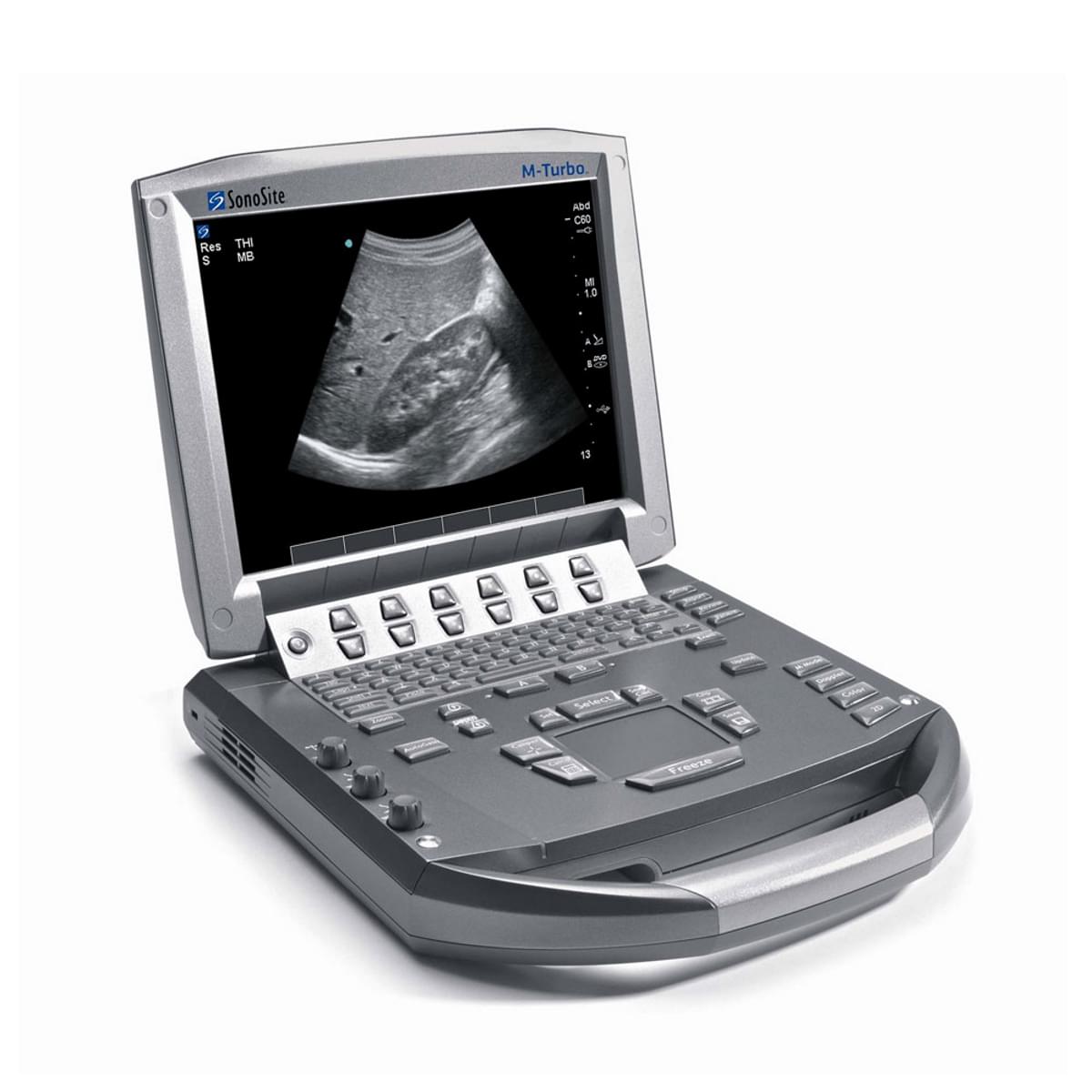

SONOSITE M-TURBO Ultrasound (Portable)

The SonoSite M-Turbo Ultrasound is a portable and powerful medical imaging tool. Its high-quality imaging capabilities aid in accurate diagnoses, while its user-friendly interface and durability make it essential for healthcare professionals in diverse settings. Enhanced portability and advanced technology contribute to efficient and effective patient care.

Sonosite M-Turbo Features

The Sonosite M-Turbo ultrasound system that offers many configurations and setting to help get the perfect ultrasonic images. The M-Turbo system provides high-quality imaging for applications such as Anesthesia, Critical Care, Cardiology, Emergency Medicine, Musculoskeletal, Obstetrics, Gynecology, Radiology, Vascular, Surgery, and shared service.

The Sonosite M-turbo Ultrasound offers a faster processor than its predecessors, the Sonosite MicroMaxx and the Sonosite Titan systems. The ultrasound system comes with the SonoHD Imaging technology that can reduce the speckle noise and other artifacts in the image and improve the quality and sharpness of tissues in the ultrasonic images. Making it easier to distinguish vessel structure and pathology, for quicker diagnostics. The M-Turbo ultrasound offers a wide range of connectivity options, making it easy to transfer data from the system to the facility’s patient information system.

• 13 compatible transducers
• Lithium-ion battery
• 8 GB internal flash memory
• Integrated speakers
• 6.7 lbs (3.04 kg)
• 10.4” (30.2 cm) diagonal LCD screen
• Premium image quality
• Splash resistant user-interface
• Wireless connectivity

Specifications

Ultrasound Dimensions

• Height: 3.1” (7.9 cm)
• Width: 10.8” (27.4 cm)
• Depth: 11.9” (30.2 cm)
• Weight: 6.7 lbs (3.04 kg)

Display

• Type: Liquid Crystal Display (LCD)
• Size: 10.4″ (26.4 cm)

Power

• The system operates via battery or AC power
• Rechargeable lithium-ion battery
• AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output

Onboard Photo and Clip Storage/Review

• 8 GB internal Flash memory storage capability Potential to store 30,000 images or 960 2-second clips
• Clip Store capability (maximum single clip length: 60 seconds)
• Clip Store capability via either the number of heart cycles (using the ECG) or time base Maximum storage in ECG beats mode is 10 heart cycles. Maximum storage in time base mode is 60 seconds
• Cine review up to 255 frame-by-frame images

Measurement Tools, Pictograms, and Annotations

• 2D: Distance calipers, ellipse, and manual trace
• Doppler: Velocity measurements, pressure half-time, auto and manual trace
• M-Mode: Distance and time measurements, heart rate calculation
• User-selectable text and pictograms
• User-defined, application-specific annotations Biopsy guidelines

External Data Management and Wireless

• DICOM Image Management (TCP/IP):
  • Print and Store, Modality Work List
• Storage Commit:
  • Modality, Perform, Procedure Step
• PC Workstation Image Management (TCP/IP, USB):
  • SiteLink Image Manager – allows the transfer, archiving, viewing and printing of high-resolution bitmap images/clips, and batch compression to JPEG on PCs
  • Direct writing capability to USB 2.0 mass storage removable media (PC and MAC compatible)
  • Supported export formats are: MPEG-4 (H.264), JPEG, BMP, and HTML
  • SonoSite Education Key training video compatible

External Video and Audio

• S-video (in/out) to VCR or DVD for record and playback
• RGB or DVI output to an external LCD display
• Composite video output (NTSC/PAL) to VCR or DVD, video printer or external LCD display
• Audio output
• Integrated speakers

H-Universal Stand and Peripherals

• Transducer and gel holders
• Optional Triple Transducer Connect (TTC) to quickly activate transducers electronically
• Optional foot switch

Optional Peripherals

• Printers: Medical-grade black and white or color
• External storage devices: Medical-grade DVD
• External data input devices: Barcode reader ECG module: 3-lead ECG – works with standard ECG leads and electrodes External analog ECG input also available
• USB barcode reader

Broadband, Multifrequency Imaging

• 2D / Tissue Harmonic Imaging / M-Mode
• Velocity Color Doppler / Color Power Doppler
• PW, PW Tissue Doppler and CW
• Doppler angle, correct after freeze

Image Processing

• SonoADAPT Tissue Optimization
• SonoHD Imaging Technology
• Advanced Needle Visualization (SonoMBe Imaging)
• Dual Imaging, Duplex Imaging, 2x pan/zoom capability, Dynamic range and gain

Transducer Types

• Broadband and Multifrequency:
  • Linear Array, Curved Array, Phased Array, Multiplane TEE and Micro-Convex
• Single Frequency:
  • Cardiac Static Pencil

Application Specific Calculations

• OB/GYN/Fertility: Diameter/ellipse measurements, volume, ten follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user-selectable authors, ratios, amniotic fluid index, patient report, humerus and tibia measurement and charts
• Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report
• CIMT (Carotid Intima Media Thickness): Embedded SonoCalc IMT software (optional) – automatic edge detection with mean and maximum thickness reporting
• Cardiac: Automated Cardiac Output package and patient report including ventricular, aortic and atrial measurements; ejection fraction, volume measurements, Simpson’s rule, continuity equation, pressure half-time and cardiac output; PA AT, TV E, A, PHT, TVI, MV time, Palm Veins
• Transcranial Doppler (TCD): Complete TCD package including Time Average Peak (TAP)

Compatible Transducers

• L38xi
• HFL38x
• HFL50x
• L25x
• C11x
• C60x
• ICTx
• P21x
• P10x
• SLAx
• TOEx/TEEx
• D2x
• L52x
